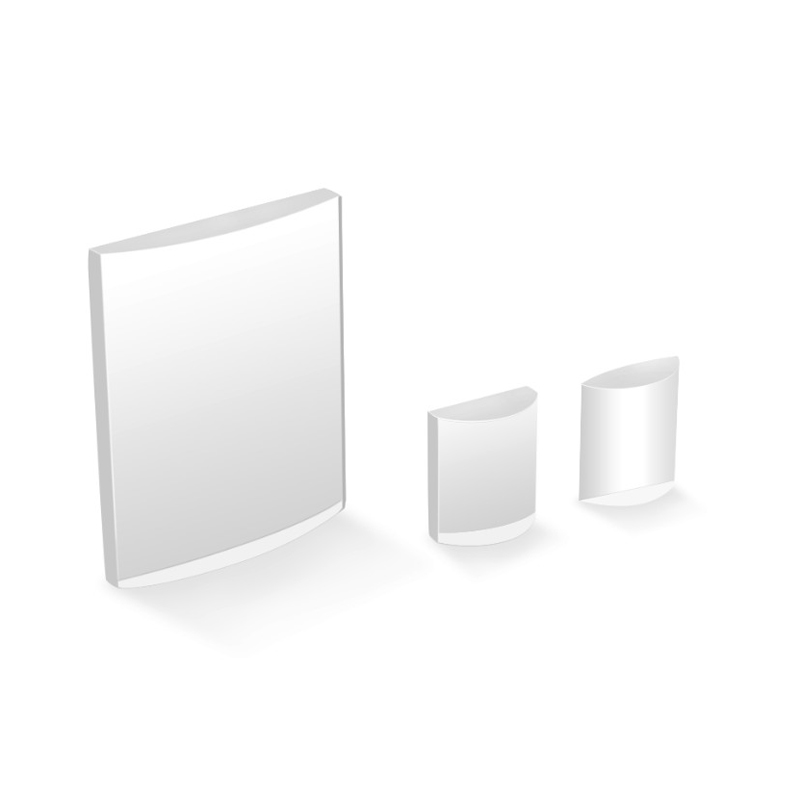

Plano-Convex Cylindrical Lenses
Material:
N-BK7,
UV grade fused silica,
CaF₂ etc
Center Thickness:
+/-0.2mm
Paraxial Focal Length:
+/-2%
Coating:
Uncoated,
Single Layer MgF₂
AR@250-400nm, Ravg<0.5%
AR@400-700nm, Ravg<0.5%
AR@650-1050nm, Ravg<0.5%
AR@1000-1650nm, Ravg<0.5%
Diameter Tolerance:
+0.0,-0.15mm
Surface Quality:
60/40~20/10
Surface Flatness:
△N<λ/4
Centering:
3~5′

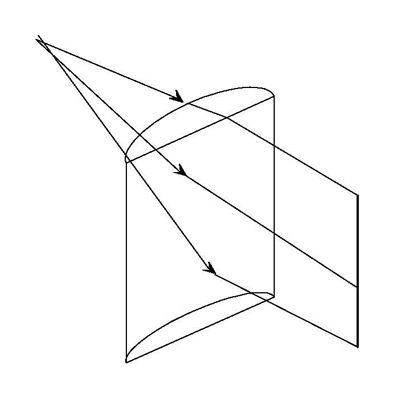

Cylindrical lens and filters: a cylindrical lens focuses incoming light rays into a one-dimensional line alone a specific axis. Used for Point of Care Testing (POCT) devices.
Plano convex cylindrical lenses are utilized to compress light in 1 axis. In order to generate a line image from a point of light and to change the aspect ratio of an image, a positive (convex) cylindrical lens is used. It is also applied to focus collimated input light to a line.
wdt_ID Part No. Material f (mm) Length (mm) Width (mm) t c (mm) t e (mm)
27
PCXL15520
N-BK7
20
5
5
2.31
2
90
PCXL164040
N-BK7
4
6
4
3.6
2
235
PCXL164058
N-BK7
5.8
6
4
2.8
2
236
PCXL18404
N-BK7
4
8
4
3.6
2
237
PCXL184058
N-BK7
5.8
8
4
2.8
2
238
PCXL186064
N-BK7
6.4
8
6
4
2
239
PCXL197077
N-BK7
7.7
9
7
4.1
2
240
PCXL11010127
N-BK7
12.7
10
10
4.31
2
241
PCXL1101020
N-BK7
20
10
10
3.29
2
242
PCXL1101025
N-BK7
25
10
10
3.01
2
243
PCXL1126064
N-BK7
6.4
12
6
4
2
244
PCXL1121010
N-BK7
10
12
10
5.9
2
245
PCXL11210127
N-BK7
12.7
12
10
4.31
2
246
PCXL1121015
N-BK7
15
12
10
3.8
2
247
PCXL1121020
N-BK7
20
12
10
3.3
2
248
PCXL1121025
N-BK7
25
12
10
3
2
249
PCXL1121040
N-BK7
40
12
10
2.6
2
250
PCXL1171520
N-BK7
20
17
15
5.2
2
251
PCXL1201010
N-BK7
10
20
10
5.9
2
252
PCXL12010127
N-BK7
12.7
20
10
4.31
2
253
PCXL1201015
N-BK7
15
20
10
3.8
2
254
PCXL1201020
N-BK7
20
20
10
3.29
2
255
PCXL1201025
N-BK7
25
20
10
3.01
2
256
PCXL1201040
N-BK7
40
20
10
2.6
2
257
PCXL1202050
N-BK7
50
20
20
4.02
2
| wdt_ID | Part No. | Material | f (mm) | Length (mm) | Width (mm) | t c (mm) | t e (mm) |
|---|---|---|---|---|---|---|---|
| 27 | PCXL15520 | N-BK7 | 20 | 5 | 5 | 2.31 | 2 |
| 90 | PCXL164040 | N-BK7 | 4 | 6 | 4 | 3.6 | 2 |
| 235 | PCXL164058 | N-BK7 | 5.8 | 6 | 4 | 2.8 | 2 |
| 236 | PCXL18404 | N-BK7 | 4 | 8 | 4 | 3.6 | 2 |
| 237 | PCXL184058 | N-BK7 | 5.8 | 8 | 4 | 2.8 | 2 |
| 238 | PCXL186064 | N-BK7 | 6.4 | 8 | 6 | 4 | 2 |
| 239 | PCXL197077 | N-BK7 | 7.7 | 9 | 7 | 4.1 | 2 |
| 240 | PCXL11010127 | N-BK7 | 12.7 | 10 | 10 | 4.31 | 2 |
| 241 | PCXL1101020 | N-BK7 | 20 | 10 | 10 | 3.29 | 2 |
| 242 | PCXL1101025 | N-BK7 | 25 | 10 | 10 | 3.01 | 2 |
| 243 | PCXL1126064 | N-BK7 | 6.4 | 12 | 6 | 4 | 2 |
| 244 | PCXL1121010 | N-BK7 | 10 | 12 | 10 | 5.9 | 2 |
| 245 | PCXL11210127 | N-BK7 | 12.7 | 12 | 10 | 4.31 | 2 |
| 246 | PCXL1121015 | N-BK7 | 15 | 12 | 10 | 3.8 | 2 |
| 247 | PCXL1121020 | N-BK7 | 20 | 12 | 10 | 3.3 | 2 |
| 248 | PCXL1121025 | N-BK7 | 25 | 12 | 10 | 3 | 2 |
| 249 | PCXL1121040 | N-BK7 | 40 | 12 | 10 | 2.6 | 2 |
| 250 | PCXL1171520 | N-BK7 | 20 | 17 | 15 | 5.2 | 2 |
| 251 | PCXL1201010 | N-BK7 | 10 | 20 | 10 | 5.9 | 2 |
| 252 | PCXL12010127 | N-BK7 | 12.7 | 20 | 10 | 4.31 | 2 |
| 253 | PCXL1201015 | N-BK7 | 15 | 20 | 10 | 3.8 | 2 |
| 254 | PCXL1201020 | N-BK7 | 20 | 20 | 10 | 3.29 | 2 |
| 255 | PCXL1201025 | N-BK7 | 25 | 20 | 10 | 3.01 | 2 |
| 256 | PCXL1201040 | N-BK7 | 40 | 20 | 10 | 2.6 | 2 |
| 257 | PCXL1202050 | N-BK7 | 50 | 20 | 20 | 4.02 | 2 |
