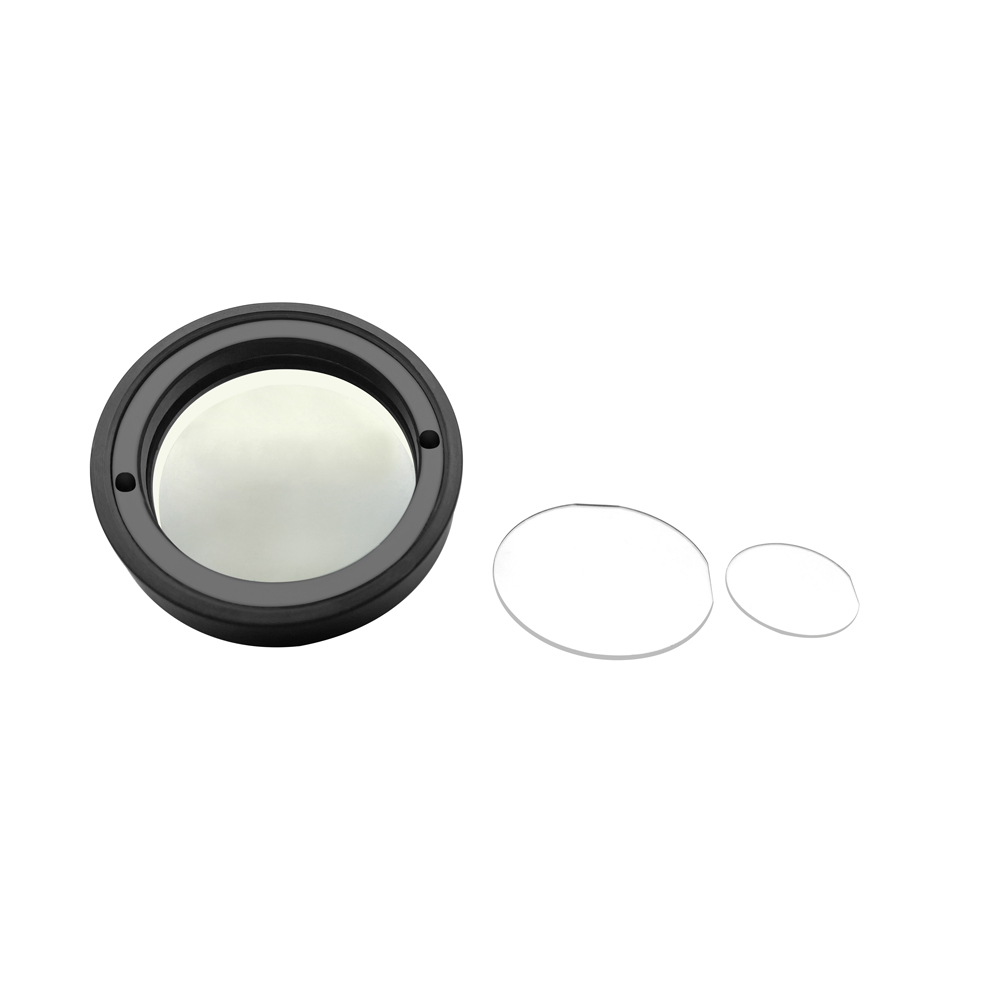

Polarization Rotator
The Polarization Rotator can rotate the polarized incident beam to a specified angle.
| wdt_ID | Attributes | Value |
|---|---|---|
| 27 | Â Material: | Quartz |
| 68 | Surface Quality: | 20/10 |
| 69 | Wavefrond Distortion: | ＜λ/4 |
| 70 | Rotation Tolerance: | ＜5' |
| 71 | Parallelism: | ＜20'' |
| 72 | C.A | >90% |
| 73 |  Damage Threshold: | >500 MW/cm² |
| 74 | Â Coating: | AR/AR |
| 75 | Stardard Wavelength | 532nm, 632.8nm, 1064nm, |
wdt_ID Angle of Rotation 10° 45° 90°
76
Waveplatge (nm)
Thinkeness(nm)
Thinkeness(nm)
Thinkeness(nm)
77
532
0.37
1.67
3.33
78
632.8
0.55
2.4
4.81
79
808
0.89
4.02
8.03
80
1064
1.58
7.131
14.26
| wdt_ID | Angle of Rotation | 10° | 45° | 90° |
|---|---|---|---|---|
| 76 | Waveplatge (nm) | Thinkeness(nm) | Thinkeness(nm) | Thinkeness(nm) |
| 77 | 532 | 0.37 | 1.67 | 3.33 |
| 78 | 632.8 | 0.55 | 2.4 | 4.81 |
| 79 | 808 | 0.89 | 4.02 | 8.03 |
| 80 | 1064 | 1.58 | 7.131 | 14.26 |
wdt_ID Type Rotation Angle(Counter-Clockwise) Diameter(mm ) Â
1
WPR4112
45°
12.7
24
WPR4115
45°
15
25
WPR4120
45°
20
26
WPR4125
45°
25.4
27
WPR9112
90°
12.7
28
WPR9115
90°
15
29
WPR9120
90°
20
30
WPR9125
90°
25.4
| wdt_ID | Type | Rotation Angle(Counter-Clockwise) | Diameter(mm ) Â |
|---|---|---|---|
| 1 | WPR4112 | 45° | 12.7 |
| 24 | WPR4115 | 45° | 15 |
| 25 | WPR4120 | 45° | 20 |
| 26 | WPR4125 | 45° | 25.4 |
| 27 | WPR9112 | 90° | 12.7 |
| 28 | WPR9115 | 90° | 15 |
| 29 | WPR9120 | 90° | 20 |
| 30 | WPR9125 | 90° | 25.4 |
