Thin Film Polarizers
Thin Film Polarizers separate the s- and p-polarization components. They are designed for use in high energy laser applications. Due to a high damage threshold, Thin Film Polarizers are used as an alternative to Glan Laser Polariser or Polarising Beamsplitter Cube.
Features:
- 45°or Brewster Angle incident
- Applicable for high energy
wdt_ID Attributes Values
1
Material:
N-BK7, UV Fused Silica
2
Surface Quality:
60/40
15
Flatness:
λ/8@632.8nm
16
Wedge:
30''
17
Extinction Ratio:
100:1 ~ 1000:1
18
Polarization Characters :

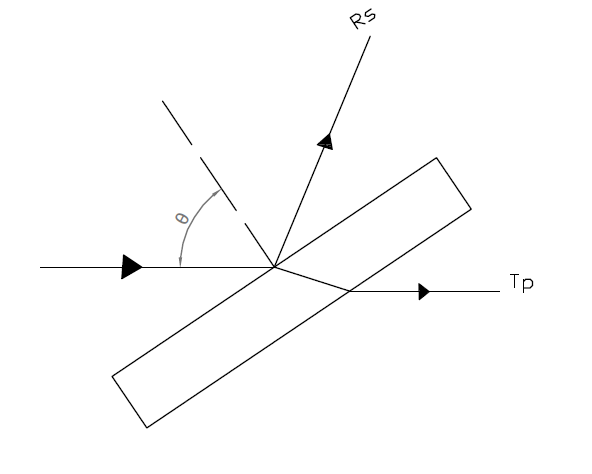

P polarization transmitted, S polarization reflected
19
Coating:
AR on one side, Polarization beamsplitter coating on another side
| wdt_ID | Attributes | Values |
|---|---|---|
| 1 | Material: | N-BK7, UV Fused Silica |
| 2 | Surface Quality: | 60/40 |
| 15 | Flatness: | λ/8@632.8nm |
| 16 | Wedge: | 30'' |
| 17 | Extinction Ratio: | 100:1 ~ 1000:1 |
| 18 | Polarization Characters : | P polarization transmitted, S polarization reflected |
| 19 | Coating: | AR on one side, Polarization beamsplitter coating on another side |
 |
wdt_ID Type Wavelength Incident Angle Extinction Ratio Dimension(mm)
1
PBSP10121
1064nm
56.5°
100:1
Φ12.7 x 3.0
24
PBSP10251
1064nm
56.5°
100:1
Φ25.4 x 3.0
| wdt_ID | Type | Wavelength | Incident Angle | Extinction Ratio | Dimension(mm) |
|---|---|---|---|---|---|
| 1 | PBSP10121 | 1064nm | 56.5° | 100:1 | Φ12.7 x 3.0 |
| 24 | PBSP10251 | 1064nm | 56.5° | 100:1 | Φ25.4 x 3.0 |
